Concepta

/ A versatile and innovative range of spotlights which has been designed to suit a wide range of applications. Available in a variety of beam angles and numerous lumen outputs which can be fine tuned using its on-board lumen output dip switches.

Concepta

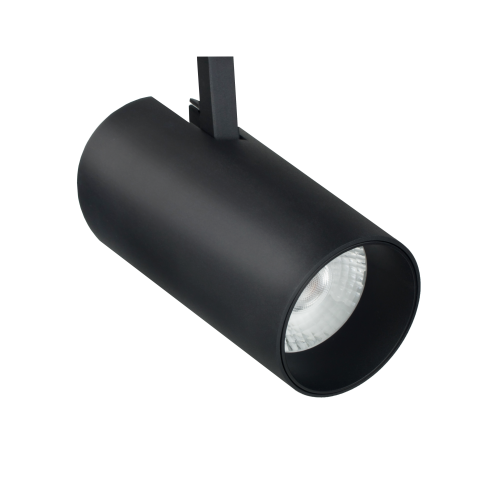

Concepta Black
Concepta
Concepta White
Concepta

Product details & features

The Concepta spotlight range is the ideal choice for retail lighting solutions, commercial lighting solutions and display lighting. This popular retail spotlight range is ideal for retail displays requiring an unobtrusive lighting solution.

  • Suitable for vertical mounting.
  • Dimming LED systems are complex. Check compatibility of dimmer with the dimmer manufacturer before purchase.
  • Leading/Trailing Edge dimmable options suitable for use with LED Leading Edge/Trailing Edge LED dimmers only.
  • DALI dimmable options are currently supplied with DALI 2 drivers. Check compatibility with any other DALI devices being used before purchase. Illuma cannot be held responsible for any incompatibility problems on site.
  • DALI dimmable options dim to minimum 5%.
  • DALI dimmable options for use with 3-Circuit Control and 3-Circuit Control Recessed Track.
  • Product will be shipped set to the maximum lumen output setting.

Options available:

Lumen output

Lumen output

Lumen output

Lumen output

Colour temp.

Colour temp.

Body colour

Body colour

Beam angles

Beam angles

Body sizes

Body sizes

Track mount

Track mount

Vertical mount

Vertical mount

Surface Mount

Surface Mount

Specification:

LED chip / CRI

LED chip / CRI

Adjustable

Adjustable

IP rating

IP rating

Anti-glare

Anti-glare

Dimming options

Dimming options

Dimming options

Dimming options

Dimming options

Dimming options

Concepta product selector

Select your options from the dropdowns in the filter row to create your product code.

Filter results
Clear Filters

Key:

Add to Product Comparison

Add to my Illuma Project

Add to my Illuma Favourites

IES File

IES File

LDT File

LDT File

PDF Icon

Technical Data Sheet

No.Product CodeLumen Output(lm)Beam Angle(°)Colour TemperatureBody ColourTrack AdaptorDimmabilityDownloads
1TZ32015-WH/SDL/930
 		Selectable 1000/1500/200015Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
2TZ32015-BL/SDL/930
 		Selectable 1000/1500/200015Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
3TZ32024-WH/SDL/930
 		Selectable 1000/1500/200024Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
4TZ32024-BL/SDL/930
 		Selectable 1000/1500/200024Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
5TZ32038-WH/SDL/930
 		Selectable 1000/1500/200038Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
6TZ32038-BL/SDL/930
 		Selectable 1000/1500/200038Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
7TZ32060-WH/SDL/930
 		Selectable 1000/1500/200060Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
8TZ32060-BL/SDL/930
 		Selectable 1000/1500/200060Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
9TZ32015-WH/SDL/940
 		Selectable 1000/1500/200015Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
10TZ32015-BL/SDL/940
 		Selectable 1000/1500/200015Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
11TZ32024-WH/SDL/940
 		Selectable 1000/1500/200024Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
12TZ32024-BL/SDL/940
 		Selectable 1000/1500/200024Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
13TZ32038-WH/SDL/940
 		Selectable 1000/1500/200038Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
14TZ32038-BL/SDL/940
 		Selectable 1000/1500/200038Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
15TZ32060-WH/SDL/940
 		Selectable 1000/1500/200060Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
16TZ32060-BL/SDL/940
 		Selectable 1000/1500/200060Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
17TZ32015-WH/GDL/930
 		Selectable 1000/1500/200015Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
18TZ32015-BL/GDL/930
 		Selectable 1000/1500/200015Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
19TZ32024-WH/GDL/930
 		Selectable 1000/1500/200024Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
20TZ32024-BL/GDL/930
 		Selectable 1000/1500/200024Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
21TZ32038-WH/GDL/930
 		Selectable 1000/1500/200038Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
22TZ32038-BL/GDL/930
 		Selectable 1000/1500/200038Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
23TZ32060-WH/GDL/930
 		Selectable 1000/1500/200060Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
24TZ32060-BL/GDL/930
 		Selectable 1000/1500/200060Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
25TZ32015-WH/GDL/940
 		Selectable 1000/1500/200015Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
26TZ32015-BL/GDL/940
 		Selectable 1000/1500/200015Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
27TZ32024-WH/GDL/940
 		Selectable 1000/1500/200024Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
28TZ32024-BL/GDL/940
 		Selectable 1000/1500/200024Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
29TZ32038-WH/GDL/940
 		Selectable 1000/1500/200038Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
30TZ32038-BL/GDL/940
 		Selectable 1000/1500/200038Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
31TZ32060-WH/GDL/940
 		Selectable 1000/1500/200060Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
32TZ32060-BL/GDL/940
 		Selectable 1000/1500/200060Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
33TZ32015-WH/GDD/930
 		Selectable 1000/1500/200015Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
34TZ32015-BL/GDD/930
 		Selectable 1000/1500/200015Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
35TZ32024-WH/GDD/930
 		Selectable 1000/1500/200024Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
36TZ32024-BL/GDD/930
 		Selectable 1000/1500/200024Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
37TZ32038-WH/GDD/930
 		Selectable 1000/1500/200038Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
38TZ32038-BL/GDD/930
 		Selectable 1000/1500/200038Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
39TZ32060-WH/GDD/930
 		Selectable 1000/1500/200060Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
40TZ32060-BL/GDD/930
 		Selectable 1000/1500/200060Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
41TZ32015-WH/GDD/940
 		Selectable 1000/1500/200015Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
42TZ32015-BL/GDD/940
 		Selectable 1000/1500/200015Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
43TZ32024-WH/GDD/940
 		Selectable 1000/1500/200024Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
44TZ32024-BL/GDD/940
 		Selectable 1000/1500/200024Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
45TZ32038-WH/GDD/940
 		Selectable 1000/1500/200038Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
46TZ32038-BL/GDD/940
 		Selectable 1000/1500/200038Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
47TZ32060-WH/GDD/940
 		Selectable 1000/1500/200060Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
48TZ32060-BL/GDD/940
 		Selectable 1000/1500/200060Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
49TZ32015-WH/GDC/930
 		Selectable 1000/1500/200015Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
50TZ32015-BL/GDC/930
 		Selectable 1000/1500/200015Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
51TZ32024-WH/GDC/930
 		Selectable 1000/1500/200024Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
52TZ32024-BL/GDC/930
 		Selectable 1000/1500/200024Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
53TZ32038-WH/GDC/930
 		Selectable 1000/1500/200038Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
54TZ32038-BL/GDC/930
 		Selectable 1000/1500/200038Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
55TZ32060-WH/GDC/930
 		Selectable 1000/1500/200060Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
56TZ32060-BL/GDC/930
 		Selectable 1000/1500/200060Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
57TZ32015-WH/GDC/940
 		Selectable 1000/1500/200015Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
58TZ32015-BL/GDC/940
 		Selectable 1000/1500/200015Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
59TZ32024-WH/GDC/940
 		Selectable 1000/1500/200024Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
60TZ32024-BL/GDC/940
 		Selectable 1000/1500/200024Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
61TZ32038-WH/GDC/940
 		Selectable 1000/1500/200038Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
62TZ32038-BL/GDC/940
 		Selectable 1000/1500/200038Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
63TZ32060-WH/GDC/940
 		Selectable 1000/1500/200060Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
64TZ32060-BL/GDC/940
 		Selectable 1000/1500/200060Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
65TZ42015-WH/DL/930
 		Selectable 1500/200015Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
66TZ42015-BL/DL/930
 		Selectable 1500/200015Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
67TZ42024-WH/DL/930
 		Selectable 1500/200024Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
68TZ42024-BL/DL/930
 		Selectable 1500/200024Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
69TZ42038-WH/DL/930
 		Selectable 1500/200038Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
70TZ42038-BL/DL/930
 		Selectable 1500/200038Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
71TZ42060-WH/DL/930
 		Selectable 1500/200060Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
72TZ42060-BL/DL/930
 		Selectable 1500/200060Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
73TZ42015-WH/DL/940
 		Selectable 1500/200015Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
74TZ42015-BL/DL/940
 		Selectable 1500/200015Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
75TZ42024-WH/DL/940
 		Selectable 1500/200024Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
76TZ42024-BL/DL/940
 		Selectable 1500/200024Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
77TZ42038-WH/DL/940
 		Selectable 1500/200038Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
78TZ42038-BL/DL/940
 		Selectable 1500/200038Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
79TZ42060-WH/DL/940
 		Selectable 1500/200060Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
80TZ42060-BL/DL/940
 		Selectable 1500/200060Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
81TZ33515-WH/SDL/930
 		Selectable 2500/3000/350015Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
82TZ33515-BL/SDL/930
 		Selectable 2500/3000/350015Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
83TZ33524-WH/SDL/930
 		Selectable 2500/3000/350024Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
84TZ33524-BL/SDL/930
 		Selectable 2500/3000/350024Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
85TZ33538-WH/SDL/930
 		Selectable 2500/3000/350038Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
86TZ33538-BL/SDL/930
 		Selectable 2500/3000/350038Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
87TZ33560-WH/SDL/930
 		Selectable 2500/3000/350060Warm WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
88TZ33560-BL/SDL/930
 		Selectable 2500/3000/350060Warm WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
89TZ33515-WH/SDL/940
 		Selectable 2500/3000/350015Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
90TZ33515-BL/SDL/940
 		Selectable 2500/3000/350015Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
91TZ33524-WH/SDL/940
 		Selectable 2500/3000/350024Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
92TZ33524-BL/SDL/940
 		Selectable 2500/3000/350024Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
93TZ33538-WH/SDL/940
 		Selectable 2500/3000/350038Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
94TZ33538-BL/SDL/940
 		Selectable 2500/3000/350038Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
95TZ33560-WH/SDL/940
 		Selectable 2500/3000/350060Neutral WhiteWhiteSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
96TZ33560-BL/SDL/940
 		Selectable 2500/3000/350060Neutral WhiteBlackSDL - 1-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
97TZ33515-WH/GDL/930
 		Selectable 2500/3000/350015Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
98TZ33515-BL/GDL/930
 		Selectable 2500/3000/350015Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
99TZ33524-WH/GDL/930
 		Selectable 2500/3000/350024Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
100TZ33524-BL/GDL/930
 		Selectable 2500/3000/350024Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
101TZ33538-WH/GDL/930
 		Selectable 2500/3000/350038Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
102TZ33538-BL/GDL/930
 		Selectable 2500/3000/350038Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
103TZ33560-WH/GDL/930
 		Selectable 2500/3000/350060Warm WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
104TZ33560-BL/GDL/930
 		Selectable 2500/3000/350060Warm WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
105TZ33515-WH/GDL/940
 		Selectable 2500/3000/350015Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
106TZ33515-BL/GDL/940
 		Selectable 2500/3000/350015Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
107TZ33524-WH/GDL/940
 		Selectable 2500/3000/350024Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
108TZ33524-BL/GDL/940
 		Selectable 2500/3000/350024Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
109TZ33538-WH/GDL/940
 		Selectable 2500/3000/350038Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
110TZ33538-BL/GDL/940
 		Selectable 2500/3000/350038Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
111TZ33560-WH/GDL/940
 		Selectable 2500/3000/350060Neutral WhiteWhiteGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
112TZ33560-BL/GDL/940
 		Selectable 2500/3000/350060Neutral WhiteBlackGDL - 3-Circuit Switched Track AdaptorLeading/Trailing Edge DimmableIESLDTPDF
113TZ33515-WH/GDD/930
 		Selectable 2500/3000/350015Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
114TZ33515-BL/GDD/930
 		Selectable 2500/3000/350015Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
115TZ33524-WH/GDD/930
 		Selectable 2500/3000/350024Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
116TZ33524-BL/GDD/930
 		Selectable 2500/3000/350024Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
117TZ33538-WH/GDD/930
 		Selectable 2500/3000/350038Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
118TZ33538-BL/GDD/930
 		Selectable 2500/3000/350038Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
119TZ33560-WH/GDD/930
 		Selectable 2500/3000/350060Warm WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
120TZ33560-BL/GDD/930
 		Selectable 2500/3000/350060Warm WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
121TZ33515-WH/GDD/940
 		Selectable 2500/3000/350015Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
122TZ33515-BL/GDD/940
 		Selectable 2500/3000/350015Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
123TZ33524-WH/GDD/940
 		Selectable 2500/3000/350024Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
124TZ33524-BL/GDD/940
 		Selectable 2500/3000/350024Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
125TZ33538-WH/GDD/940
 		Selectable 2500/3000/350038Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
126TZ33538-BL/GDD/940
 		Selectable 2500/3000/350038Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
127TZ33560-WH/GDD/940
 		Selectable 2500/3000/350060Neutral WhiteWhiteGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
128TZ33560-BL/GDD/940
 		Selectable 2500/3000/350060Neutral WhiteBlackGDD - 3-Circuit Control Track DALI AdaptorDALI DimmableIESLDTPDF
129TZ33515-WH/GDC/930
 		Selectable 2500/3000/350015Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
130TZ33515-BL/GDC/930
 		Selectable 2500/3000/350015Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
131TZ33524-WH/GDC/930
 		Selectable 2500/3000/350024Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
132TZ33524-BL/GDC/930
 		Selectable 2500/3000/350024Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
133TZ33538-WH/GDC/930
 		Selectable 2500/3000/350038Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
134TZ33538-BL/GDC/930
 		Selectable 2500/3000/350038Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
135TZ33560-WH/GDC/930
 		Selectable 2500/3000/350060Warm WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
136TZ33560-BL/GDC/930
 		Selectable 2500/3000/350060Warm WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
137TZ33515-WH/GDC/940
 		Selectable 2500/3000/350015Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
138TZ33515-BL/GDC/940
 		Selectable 2500/3000/350015Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
139TZ33524-WH/GDC/940
 		Selectable 2500/3000/350024Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
140TZ33524-BL/GDC/940
 		Selectable 2500/3000/350024Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
141TZ33538-WH/GDC/940
 		Selectable 2500/3000/350038Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
142TZ33538-BL/GDC/940
 		Selectable 2500/3000/350038Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
143TZ33560-WH/GDC/940
 		Selectable 2500/3000/350060Neutral WhiteWhiteGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
144TZ33560-BL/GDC/940
 		Selectable 2500/3000/350060Neutral WhiteBlackGDC - 3 Circuit Casambi Track AdaptorCasambi ProgrammableIESLDTPDF
145TZ43515-WH/DL/930
 		Selectable 2500/3000/350015Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
146TZ43515-BL/DL/930
 		Selectable 2500/3000/350015Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
147TZ43524-WH/DL/930
 		Selectable 2500/3000/350024Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
148TZ43524-BL/DL/930
 		Selectable 2500/3000/350024Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
149TZ43538-WH/DL/930
 		Selectable 2500/3000/350038Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
150TZ43538-BL/DL/930
 		Selectable 2500/3000/350038Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
151TZ43560-WH/DL/930
 		Selectable 2500/3000/350060Warm WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
152TZ43560-BL/DL/930
 		Selectable 2500/3000/350060Warm WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
153TZ43515-WH/DL/940
 		Selectable 2500/3000/350015Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
154TZ43515-BL/DL/940
 		Selectable 2500/3000/350015Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
155TZ43524-WH/DL/940
 		Selectable 2500/3000/350024Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
156TZ43524-BL/DL/940
 		Selectable 2500/3000/350024Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
157TZ43538-WH/DL/940
 		Selectable 2500/3000/350038Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
158TZ43538-BL/DL/940
 		Selectable 2500/3000/350038Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
159TZ43560-WH/DL/940
 		Selectable 2500/3000/350060Neutral WhiteWhiteSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF
160TZ43560-BL/DL/940
 		Selectable 2500/3000/350060Neutral WhiteBlackSurface - Surface Mounting PlateLeading/Trailing Edge DimmableIESLDTPDF

Sorry, no results please try again using the Advanced Product Search or call our sales team.

You may also be interested in

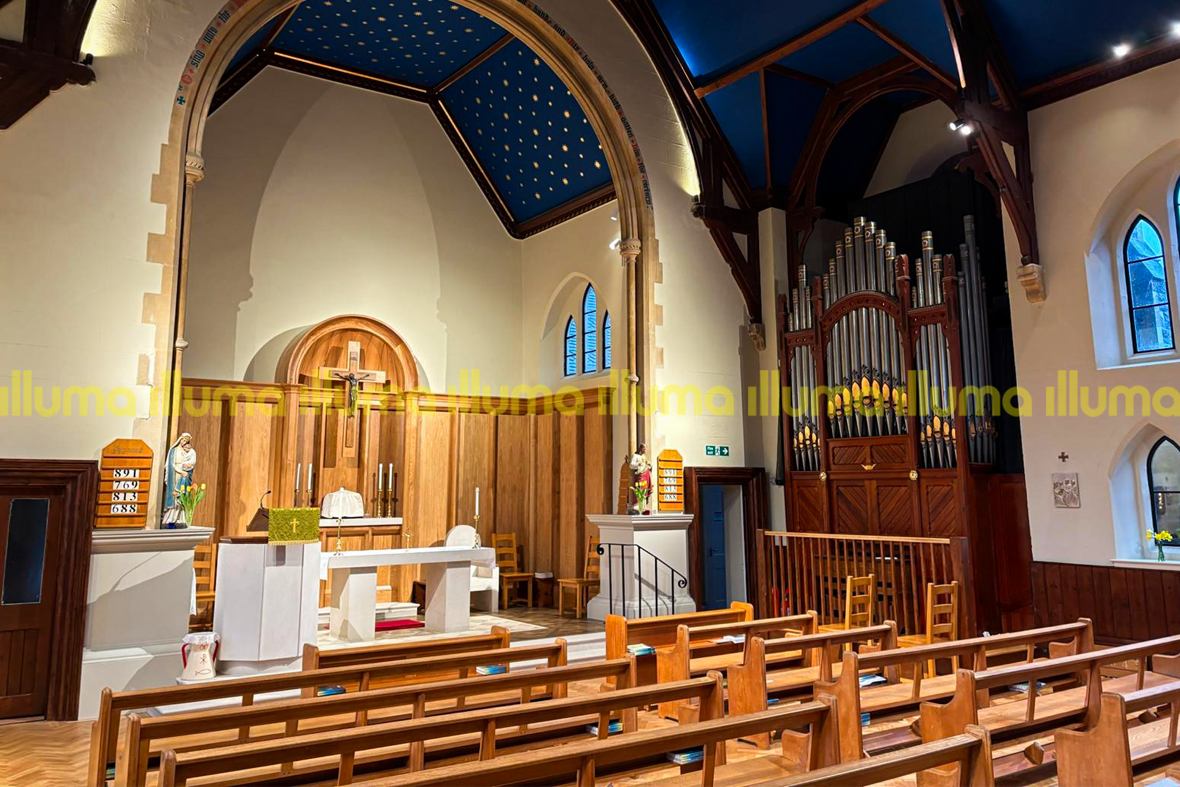

Our latest Concepta installations

Drag for 360° View
toggle zoom

Keep updated

Keep updated with the latest product launches, what's happening at illuma and the latest industry news.

You can easily opt-out or change your preferences any time you like by emailing marketing@illuma.co.uk

Contact

Illuma
